Recessed Round 12 LED Spotlight - 60  ø mm built-in hole - 2,87 W - ring 85 ø mm
  • Recessed Round 12 LED Spotlight - 60  ø mm built-in hole - 2,87 W - ring 85 ø mm
  • Dimensions Recessed Round 12 LED Spotlight 58/85 - body 85x23 mm - base 58 mm
  • Recessed Round 12 LED Spotlight 58/85 - 2,87 W - recessed hole 60 mm - body 85 mm
  • Energy label - Class C

Recessed Round 12 LED Spotlight - 60 ø mm built-in hole - 2,87 W - ring 85 ø mm

Reference: N12405885I

Product ideal for elevator operators

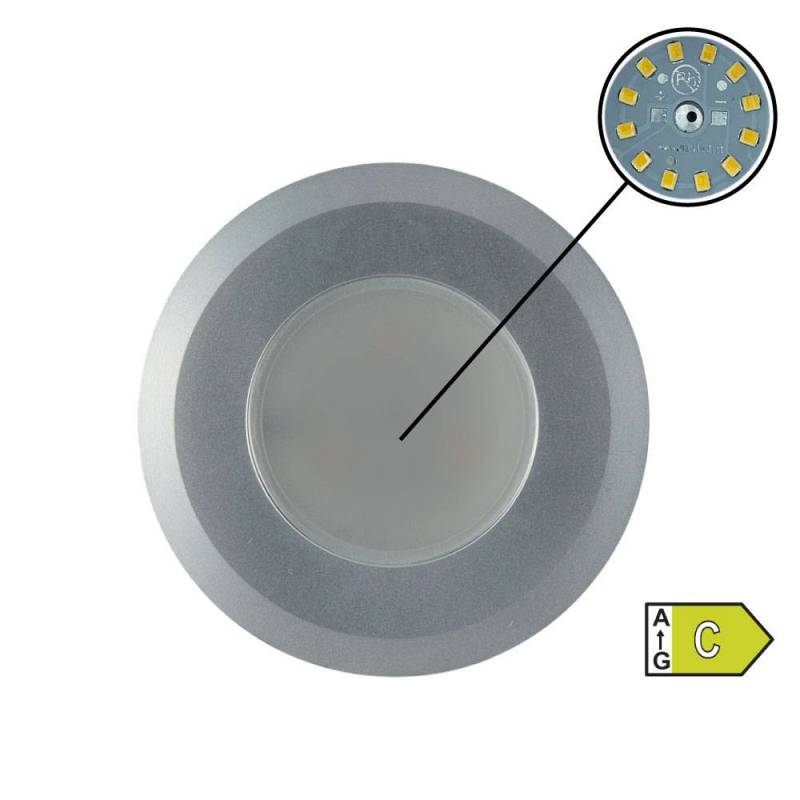

5885 round LED spotlight with CREE brand 12 LED printed circuit board and 60 mm recessed hole.

Its design and small size make it perfect for installation in elevator cabins, particularly at the ceiling.

The total height footprint is only 23 mm and the 60 mm recessed hole is among the most widely used on elevator cabins today.

The 5885 spotlight has a very good light output, about 120 lm/W, and excellent luminous efficiency due to energy class C.

The spotlight can also be supplied with all accessories for ready-to-use connection. (wiring, extension and power supply).

And it can also be combined with an emergency kit to ensure a window of operation even in the event of a blackout or power failure.

The 5885 spotlight is made entirely in Italy with high-quality, long-lasting materials.

MADE IN ITALY

Colour Temperature


Safety Payments



Delivery



Return Policies

The LED Spotlight 5885 has a recessed hole of ø 60 mm, which is ideal for fixing to the elevator ceiling.

This LED spotlight is very suitable for elevator car lighting both for its technical features and elegant design.

The spotlight is entirely manufactured in Italy with high quality materials.

The body is machined from solid anodized aluminum.

The LEDs used are a real guarantee: 12 LEDs brand CREE

Main Features:

  • Recessed LED spotlight
  • METALCORE Printed Circuit with 12 CREE brand LEDs
  • Body in anodized aluminum
  • 350mA constant current power supply
  • Nominal voltage 8.2 Vdc
  • Power 2.87 W
  • Energy class: C
  • Efficiency: 120 lm/W
  • Recessed hole diameter 60 mm
  • Body diameter 58 mm
  • Ring diameter 85 mm

The spotlight can be combined with the Emergency Kit.

Data sheet

Height
23 mm
View Angle
120°
Energy Class
C
Max Current
350 mA
Ring Diameter
85 mm
Body Diameter
ø 58 mm
Recessed hole diameter
ø 60 mm
Efficiency
120 Lm/W
Finishing
Steel
Flux
327 Lm
337 Lm
Max Power
2,87 W
Color Temperature
Neutral white (4000° K)
Warm White (3000° K)
Voltage
8,2 Vdc
Spotlight Type
Recessed

Download

LED Spotlight N12XX5885I

Data Sheet LED Spotlight N12XX5885I

Download (484.29k)

Energy Label Led Spotlight 5885

Energy Label Led Spotlight 5885

Download (69.67k)

Instr. 12 Led Spotlight Series

Instruction 12 Led Spotlight Series Connection

Download (7.74M)

Inst. 12 Led Spotlight Converter

Instruction 12 Led Spotlight with Converter Connection

Download (6.9M)

Spotlight Certificate CE

Spotlight Certificate CE

Download (133.27k)
