Kit 3 surface-mounted 12 LED VULCAN Spotlights 10515 2,87 W + power supply, extentions, wirings
Suitable product for lifts and elevators
Kit 3 round surface-mounted 12 LED VULCAN 10515 spotlights with reduced overall dimensions, only 15 mm.
Complete and ready-to-use equipment. Spotlights kit immediately ready for installation!
Ideal LED spotlights for surface-mounted application on ceilings or false ceilings.
Elegant aesthetics, stainless steel finish.
Why choosing VULCAN LED Spotlights?
It could be mounted on every pre existent hole from 10 to 84 mm diameter! And it is very simple to install through the supplied screws!

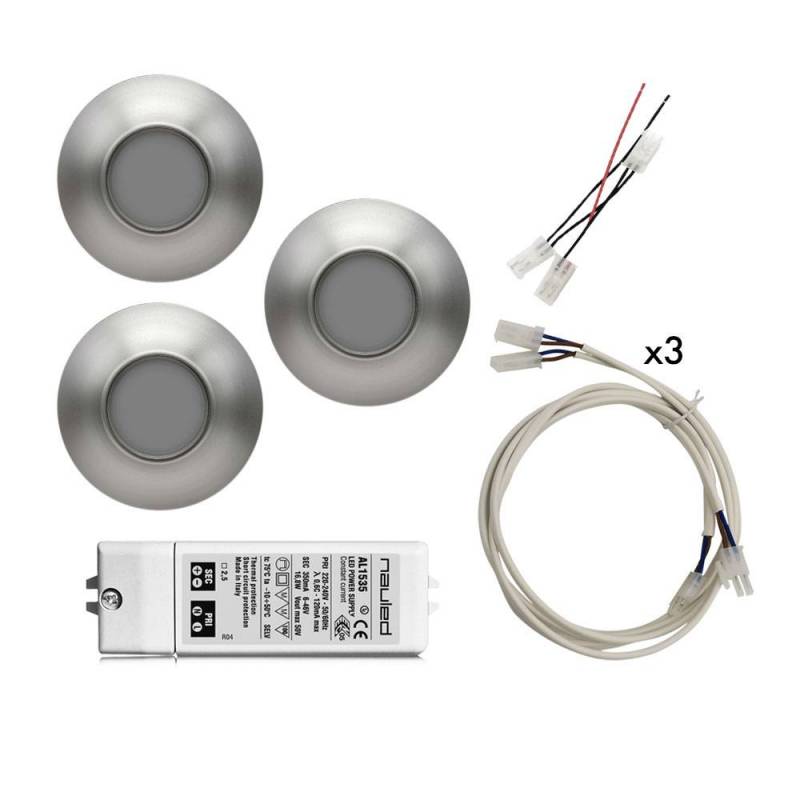

3 led VULCAN spotlights 10515 kit composition:
- n. 3 surface-mounted 12 LED spotlights vulcan 10515
- n. 1 power supply of your choice between AL 1535 (on/off) and AL20MCH (dimmable)
- n. 3 pick & light extensions - length 1 meter
- n. 1 3-way wiring
There is also the possibility of emergency integration for one or both spotlights with our emergency kits!
N.B.The characteristics listed in "Product Details" refer to the single LED spotlight.
MADE IN ITALY
The surface-mounted VULCAN 10515 12 LED spotlight kit has been designed specifically for those who need or are looking for a ready-to-use solution for installation.
The set is complete with: 3 vulcan 12 led spotlights + power supply + 3 extensions + 3-way wiring.
Nothing else is needed!
Characteristics of the VULCAN 10515 12 LED spotlights:
- Round surface-mounted 12 LED spotlight with reduced overall height, only 15 mm.
- METALCORE Printed Circuit with 12 CREE brand LEDs
- Body in anodized aluminum
- It is possible to instal it on every pre existant holes from 10 to 104 mm diameter!
- 350 mA constant current power supply
- Nominal voltage 8.2 Vdc
- Power 2.87 W
- Efficiency: 120 lm/W
- Energy class: C
- Ring diameter 85 mm
Data sheet
- Height
- 15 mm
- View Angle
- 120°
- Energy Class
- C
- Max Current
- 350 mA
- Ring Diameter
- 105 mm
- Recessed hole diameter
- till 104 mm
- Efficiency
- 120 Lm/W
- Finishing
- Steel
- Flux
- 327 Lm
337 Lm - Included in the kit
- n°1 3-ways wiring
n° 1 power supply AL1535 or AL20MCH
n° 3 extention 1m
n° 3 led spotlights - Max Power
- 2,87 W
- Color Temperature
- Neutral white (4000° K)
Warm White (3000° K) - Voltage
- 8,2 Vdc
- Spotlight Type
- Support
